My name is Dylan Lewis and I currently work as an Electrical Engineer in the quantum computing industry. I love to build and tinker so this site serves as a collection of some of my past and current projects.

GPU Accelerated Demodulator

Work in progress. Building a GPU accelerated QPSK demodulator. Polyphase MF/dMF symbol timing detector implemented. Very sparse design doc here.

Motocycle Hitch Carrier

Bought a Honda XR650L dual sport bike and needed a way to haul it around without a trailer. Unfortunately the bike is quite heavy at ~360lbs, and many of the hitch carriers you can buy top out at 400lbs which leaves little saftey margin. I decided to build my own overkill hitch carrier with 3 contact points to the truck. This required me to weld on 2 additional 2" receivers to my F150's receiver bar. I found a 6" wide U-channel at a local metal supplier that doubled as the top of the carrier and the ramp. I welded on 2 shackle points to hold the bike by the foot pegs. The U-channel was bolted to 2" square tubing that insert into the triple truck receiver

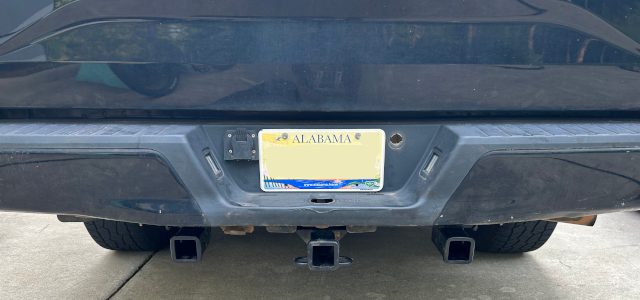

Triple hitch receiver

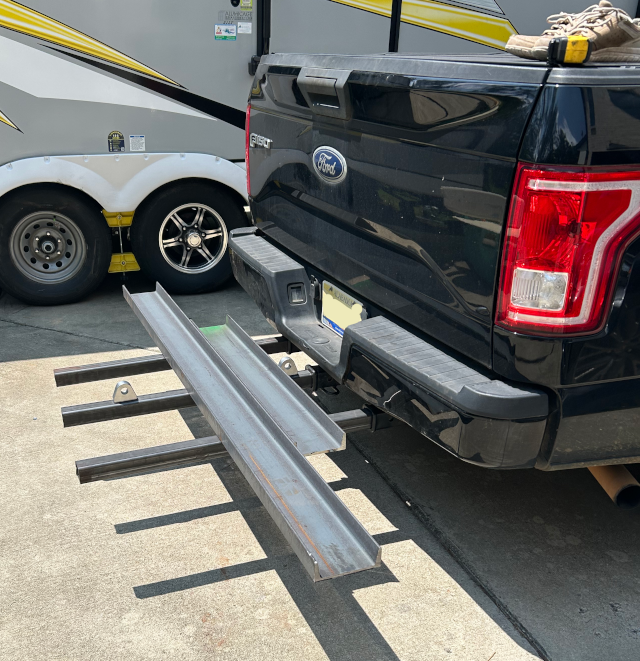

Mock up

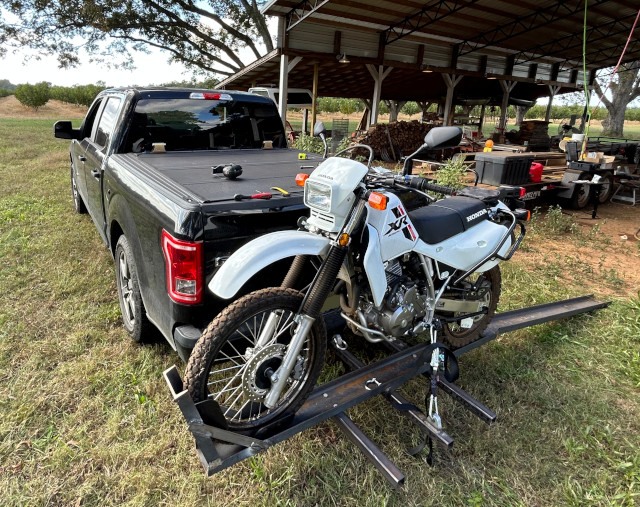

Bike on the unpainted carrier

DARTS - Van Leer Dish Restoration

Georgia Tech senior project to restore tracking and RF chain of a roof top parabolic dish. We received a couple of Ku band signals from geostationary satellites. We created a web interface to control dish remotely.

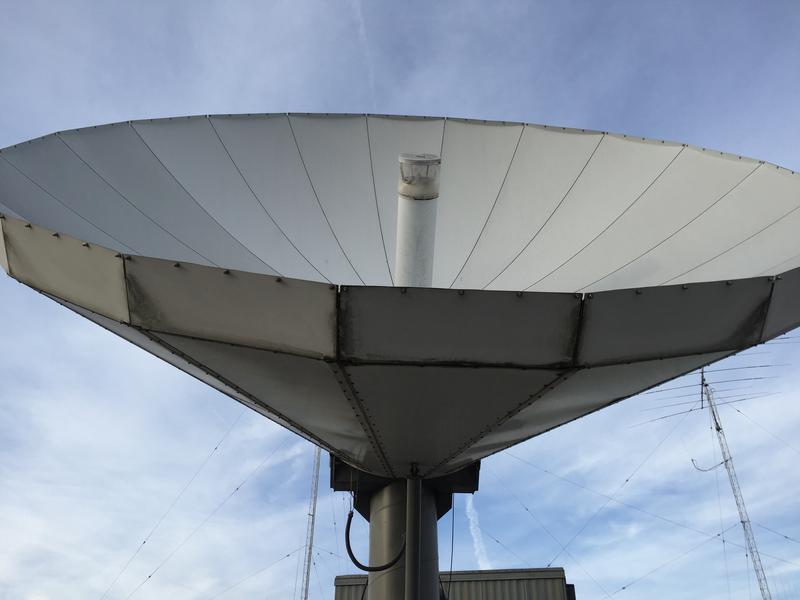

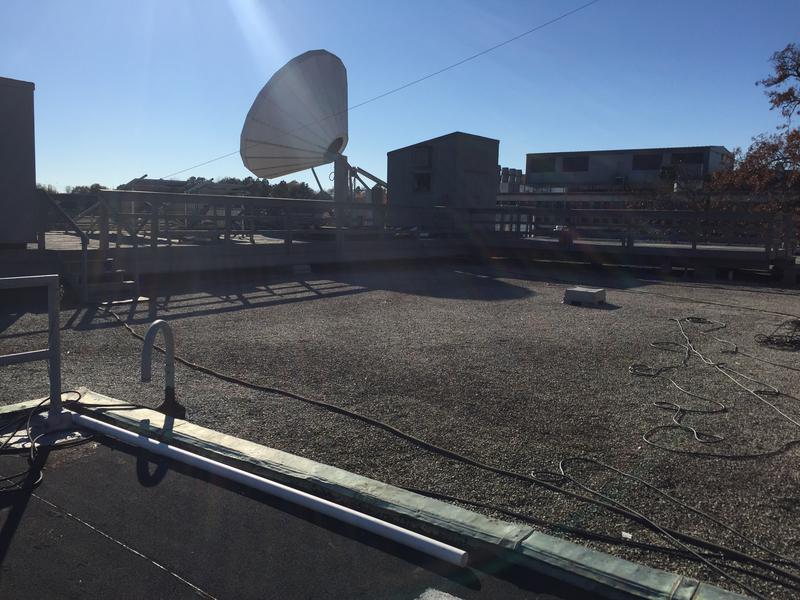

Dish from below
Dish from control room

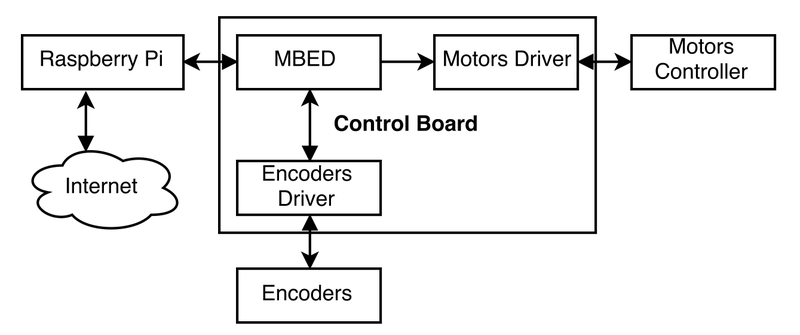

DARTS control block diagram

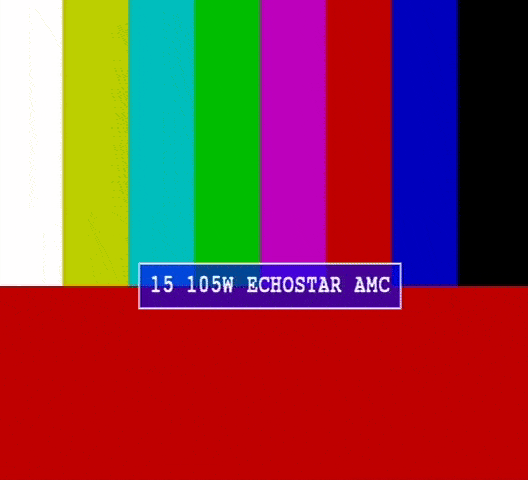

AMC15 test channel decoded with RTL-SDR

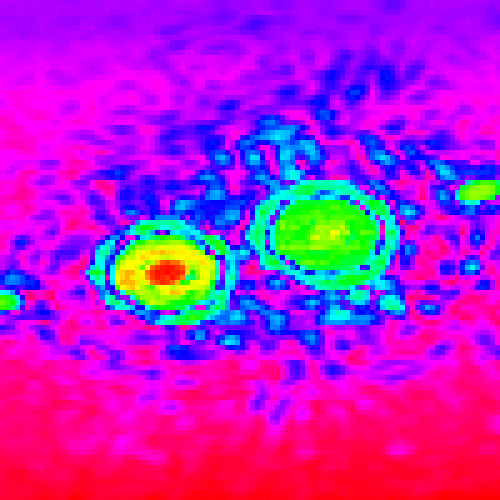

Ku band "image" of two geostationary satellites with false color

CNC Project

An idle project since I lost access to the milling tools at Georgia Tech after graduation. Goal is to create a 3axis CNC machine.

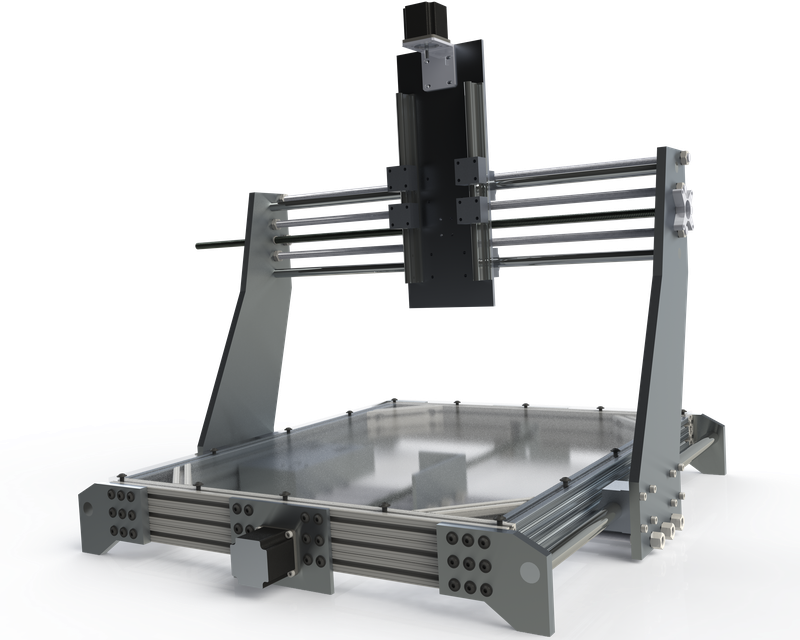

Rendering of the CNC

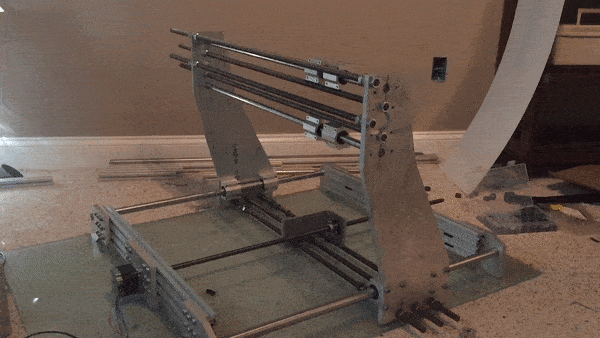

CNC moving X axis

ESP32 Base Weather Station

My brother and I share a 1991 MacGregor 26s sailboat which we use as a floating camper for trips to the beach. We both enjoy kiteboarding, which is where a large kite pulls you on a board. Since kiteboarding is a wind powered sport, I built a small weather station to sit on top of our sailboat mast to provide us with live wind and temperature readings. We threaded wire up to the top of the 26 foot mast to provide the station with 12V power. The station itself is a cupped wind meter and thermometer connected to an ESP32 in a waterproof enclosure. A 12V LED flood light is also mounted with the station. The ESP32 is a WiFi AP that routes all those who connect to a web page. The web page serves live wind and temperature readings, as well as a plot of the wind and temperature history. Can't find any picture of the station itself at the moment, but a gif of the simulated web page and a photo of the boat is below.

Simulated web gui
Ol' Greg @ Tavernier Key
Ol' Greg @ Bahia Honda marina dwarfed by a catamaran

Lifepowder

Lifepowder was a project I worked on with a couple of friends senior year of college. At the time, powdered meal replacement products like Soylent were really taking off. Problem with Soylent was that it had only one formulation, and we knew that different people have different nutritional needs and wants. So we set out to create an algorithm that would accept parameters about a person and create a formulation of ingredients to best fulfill that person's desired nutrition profile. We also built a machine that could create the powders automatically. The machine was built from T-Slot and the powder dispensers were built from food safe acrylic. A conveyor belt was also built to move powder receptacles between the powder dispensers. Scales with infrared feedback closed the loop on how much powder each stage should dispense.

Powder dispenser casing

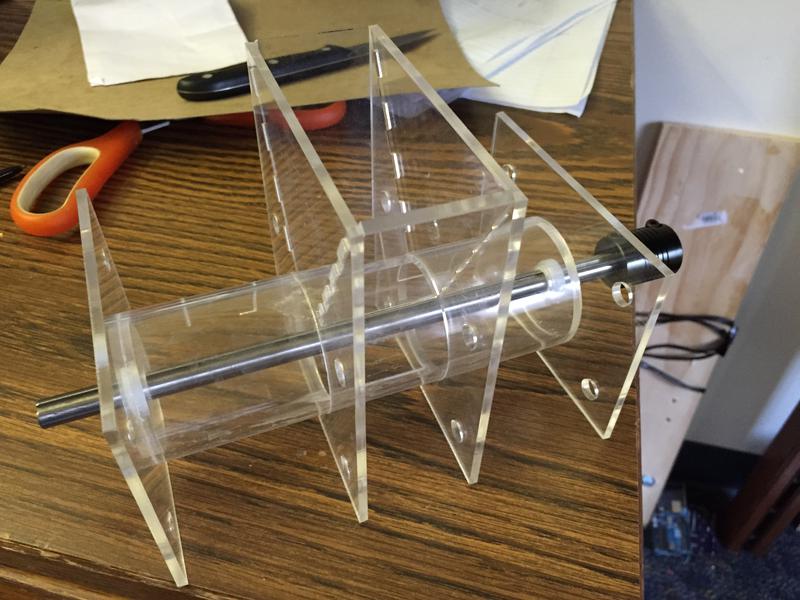

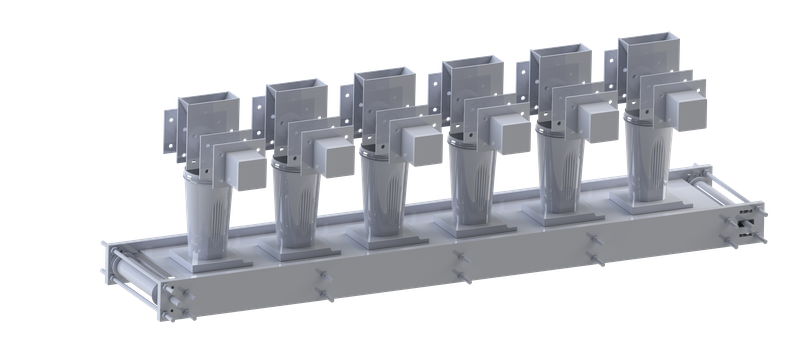

Powder dispensers lined up over conveyor belt render

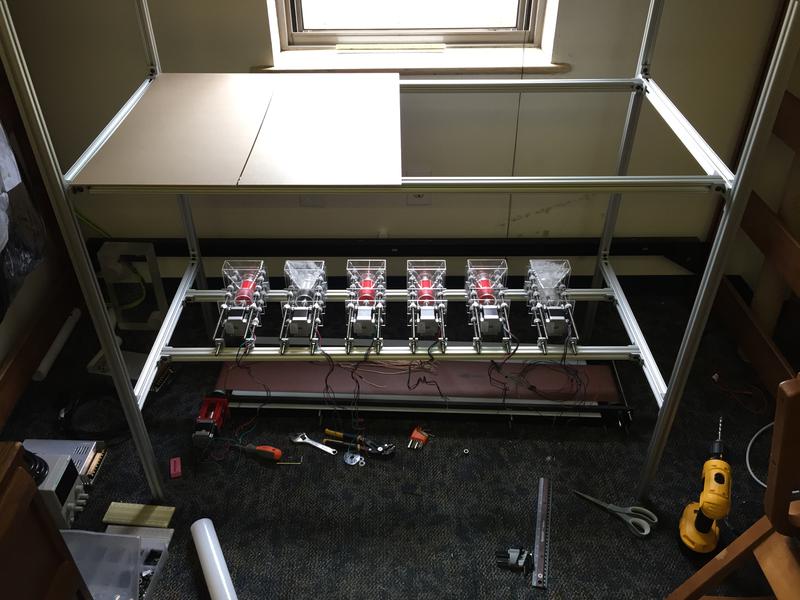

Powder dispensers lined up over conveyor belt

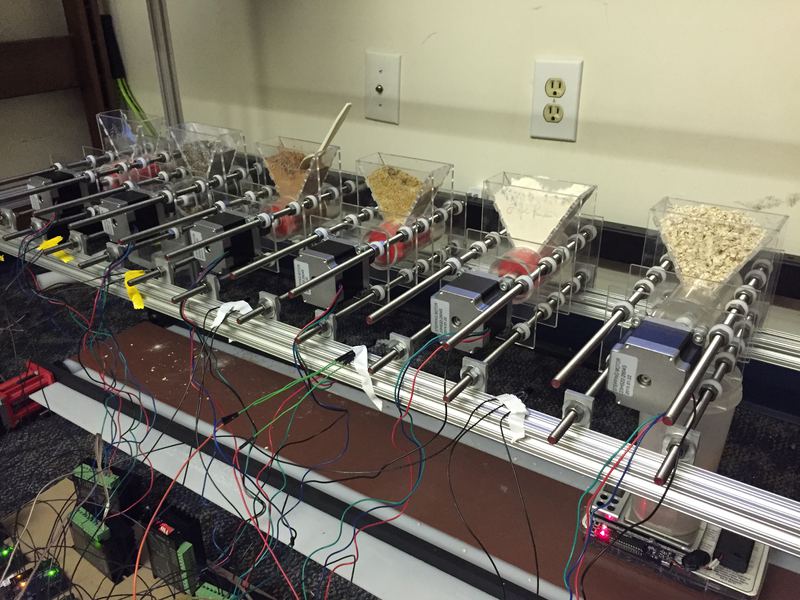

Powder dispensers up close

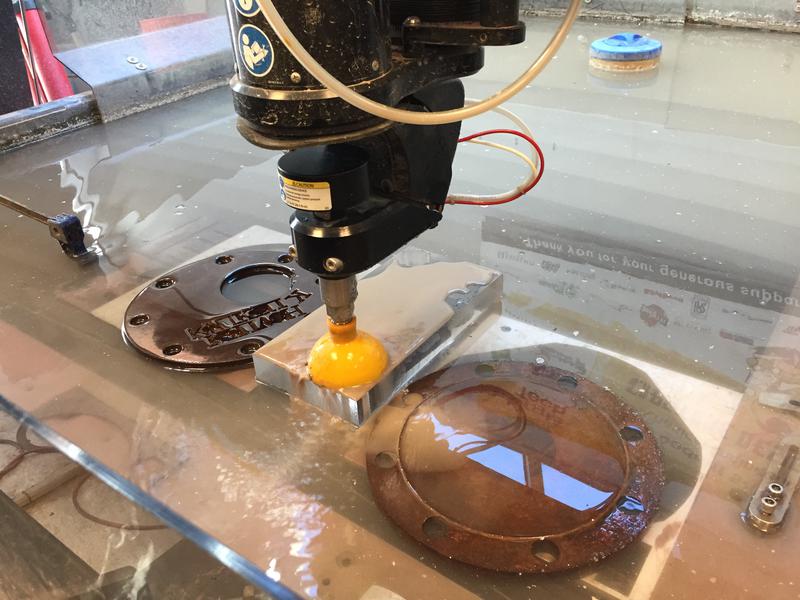

Water jetting a food safe dispenser wheel

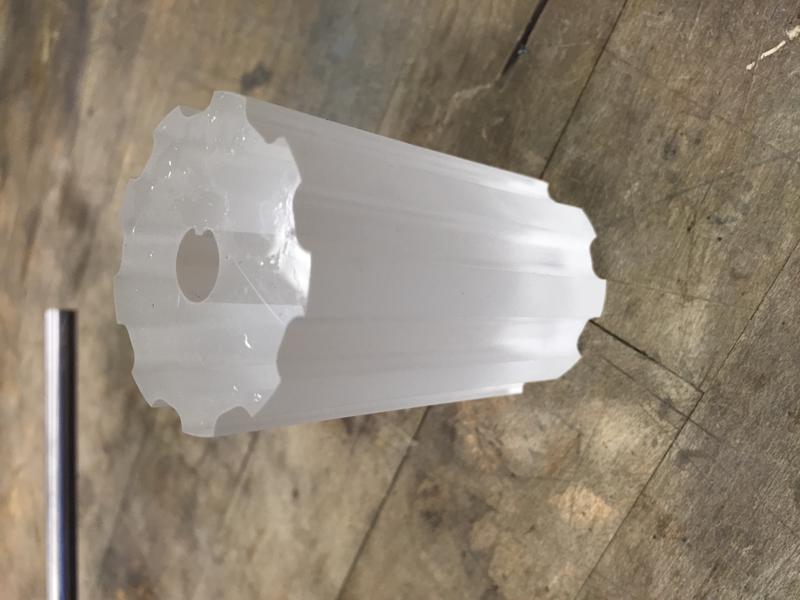

Food safe dispenser wheel

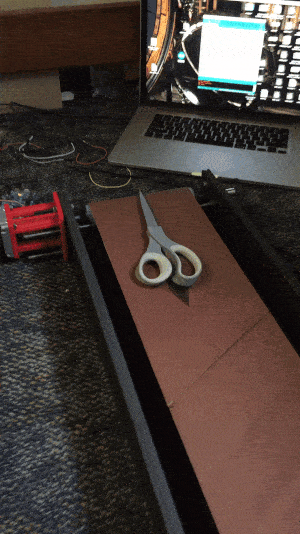

Conveyor belt in action

Ram Pump

Ram pump built and installed on a spring fed pond to pump water up to a chicken coop. Ram pumps are really simple to implement, just two check valves are the only moving parts. These pumps can lift water about 7 times higher the intake location. The intake to this ramp pump is a siphon system. Two ball valves allow you to prime the intake siphon with only a 5 gallon bucket and funnel. The siphon intake system brings water to a large standpipe the feeds the drive pipe. There are three ongoing issues with this pump that need resolving.

1) The siphon system eventually gets air in it, making the pump stop. I suspect this is from air bubbles that propogate back up the drive pipe.
2) The pond level has fallen below the intake. This is due to a leak in the overflow. Can't fix without draining and the drain is currently broken.
3) The delivery pipe up to the chicken coop is a 500ft soft irrigation hose. Animals have chewed into this hose multiple times. A PVC delivery pipe is needed.

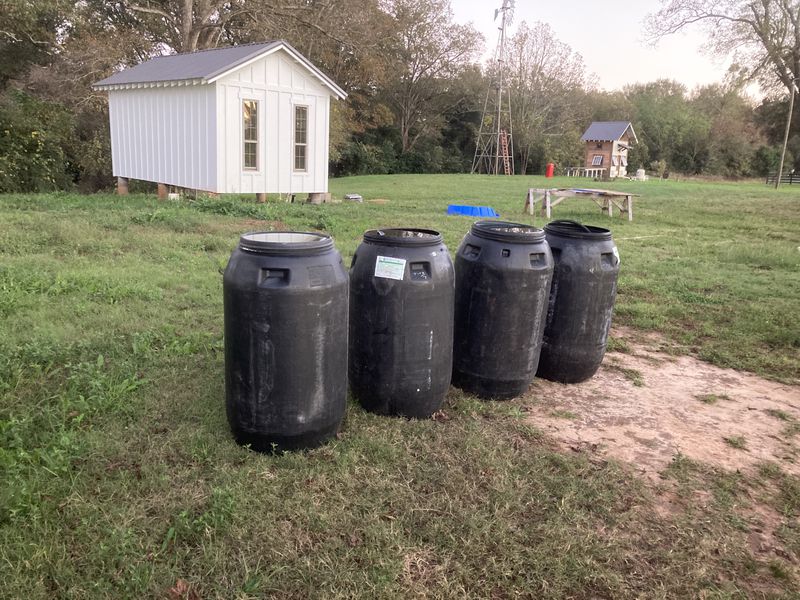

Pickle barrels for storage

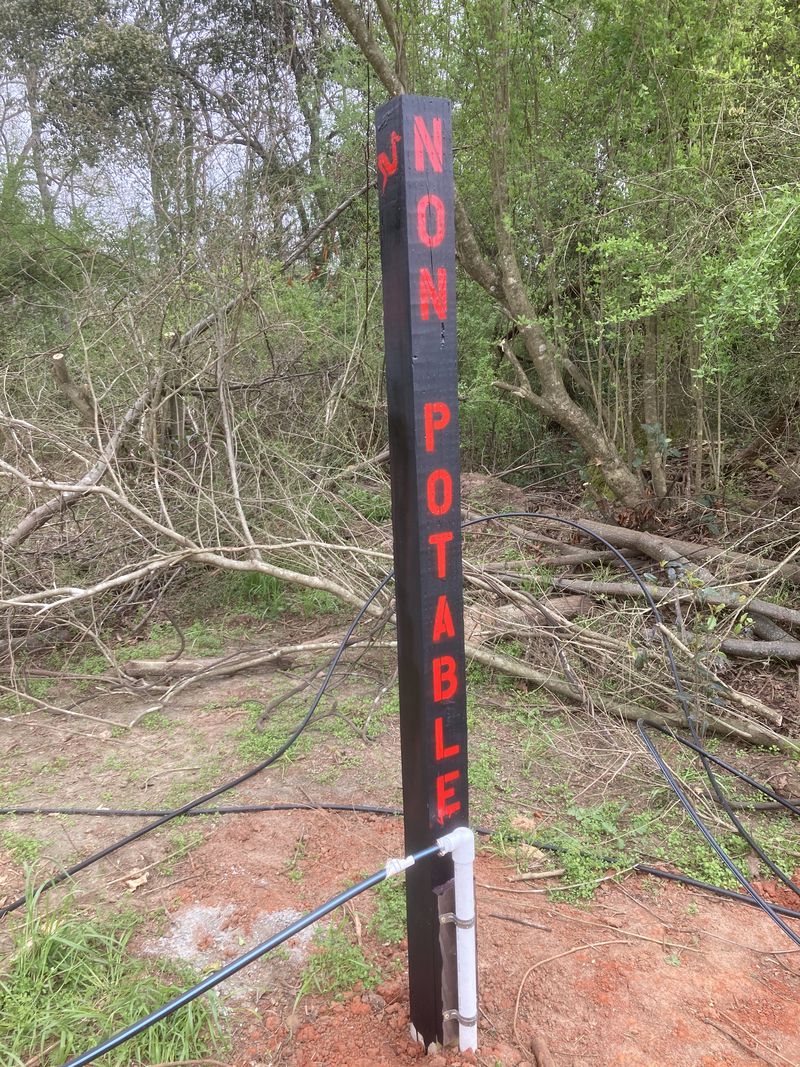

Delivery stand pipe

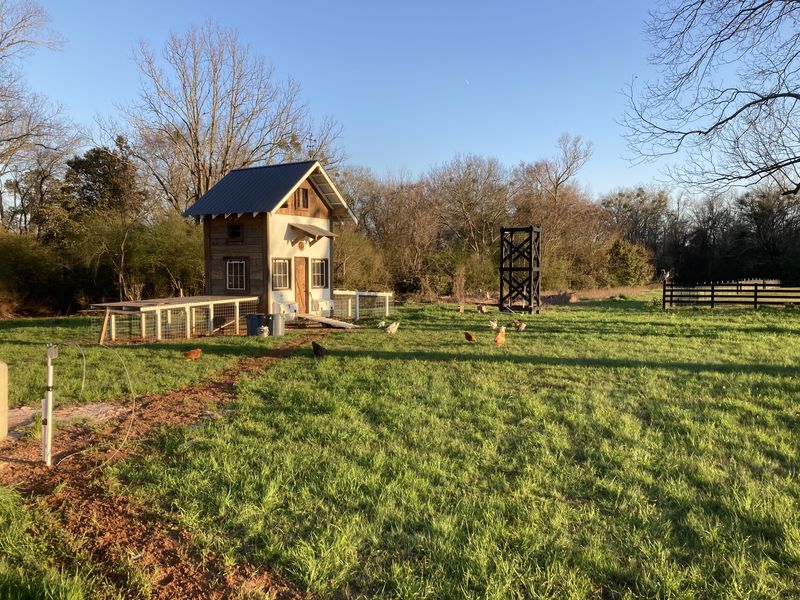

Water tower being built

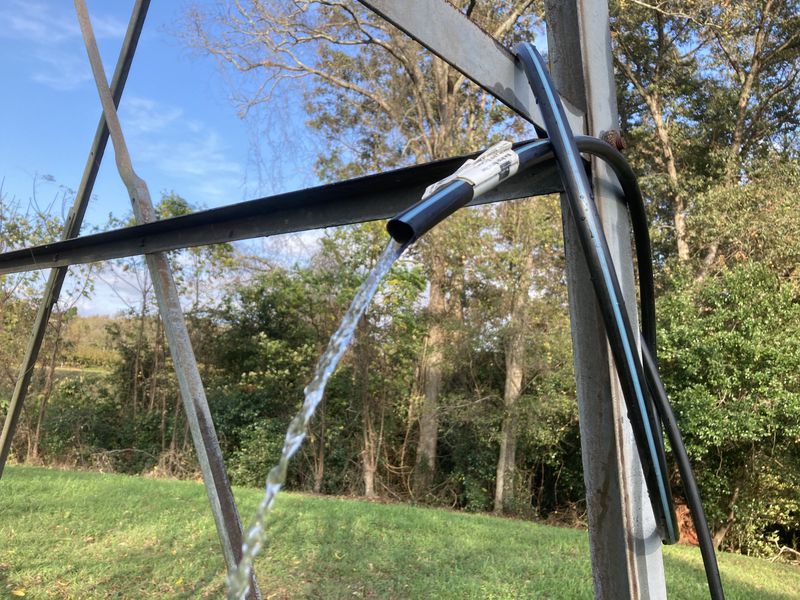

Water flowing up from the pond below
Plumbing diagram

NOAA APT Antenna and Decoder

NOAA APT is an analog weather satellite image service. Images are broadcast from polar orbit satellites around 137MHz in 36KHz wide channels. The transmission is right hand circularly polarized. It's common to use a QFH antenna to receive NOAA APT weather satellite images. I started with a paper from NASA on constructing a QFH antennas. Some components used in the paper were not readily available to me. Also the shape of the antenna was adjusted slightly to make the antenna easier to build. QFH cad
Partially assembled CAD model of QFH antenna targeting laser cutter construction
I created a model of the antenna in 4NEC to reoptimize the antenna, considering my material and construction method changes. QFH 4nec

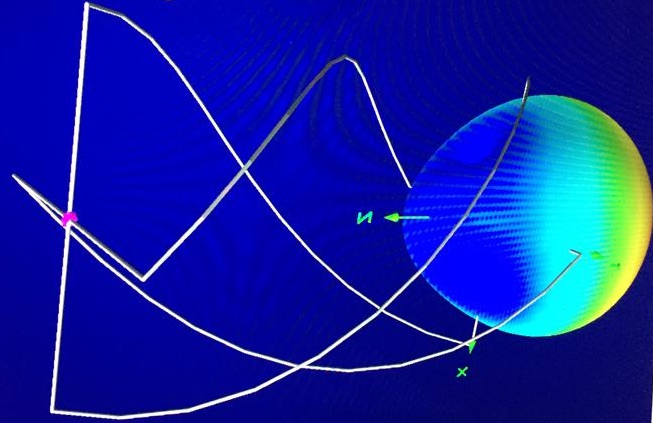

QFH model in 4NEC for optimization
I constructed this antenna in college around 2016. My first attempt at building a QFH was to use a 3 inch PVC pipe as the core structure and using swagelok connectors to connect copper antenna elements to the PVC core. The result was less than I'd hoped, it was diffcult to get eveything to line up properly and the swagelok's did not hold the antenna arms as well as I had expected. Luckily at the time, I had access to laser cutting and etching machines through school. The antenna frame was constructed from laser cut acrylic and assembled into a stack using delrin threaded rods.

QFH laser

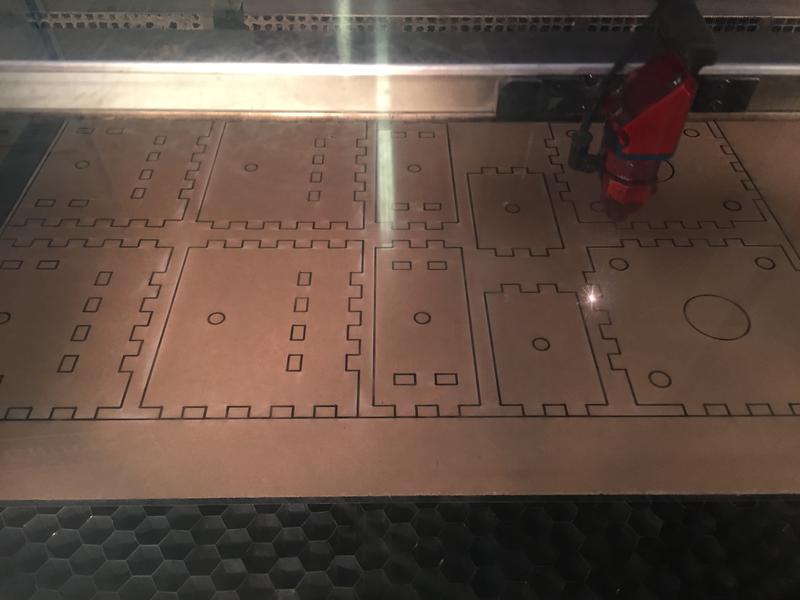

Black 1/4" acrylic being laser cut
QFH assembled1

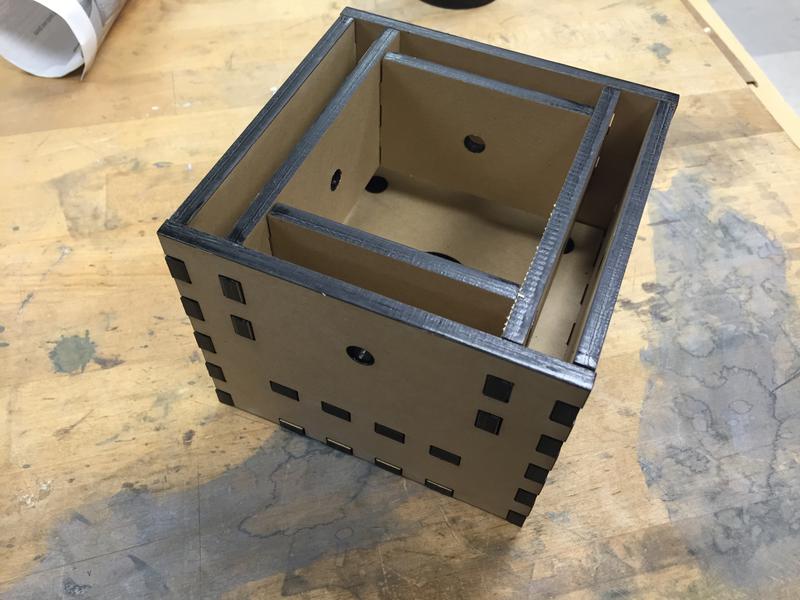

Assembly of laser cut pieces into balun box
QFH assembled2

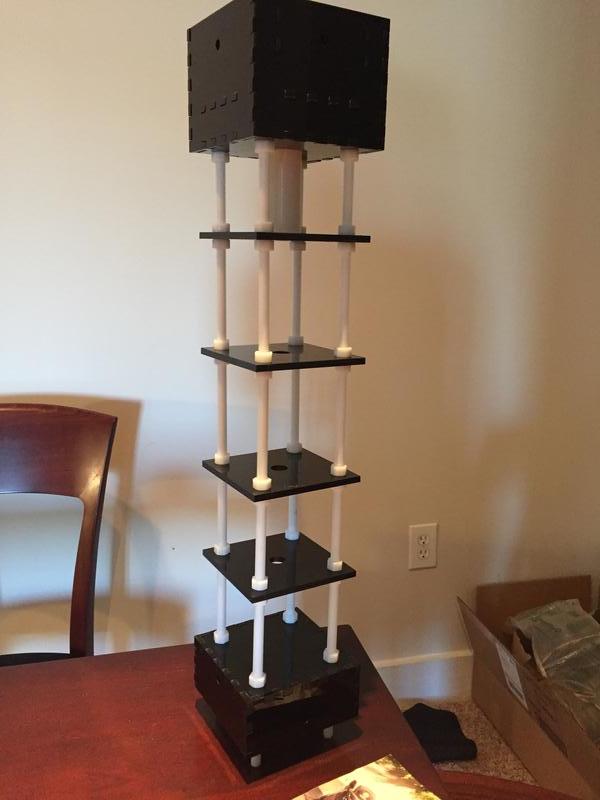

Assembly with delrin rods before copper antenna elements installed
The antenna conductors are made of 8mm copper tube, soldered together with 90° elbows. Conductors were formed by bending around a concrete form from the hardware store. The balun was constructed by wrapping coax around a 20mm PVC pipe. The copper pipes were bonded to the balun using a custom etched PCB. The PCB was etched by applying spray paint to a raw copper PCB and using a laser etcher to etch the negative. Then paint thinner was used to remove the burnt spray paint and ferric chloride was used to remove the copper. Fuse holders are soldered to the PCB and used to hold the copper pipes where they enter the balun box.

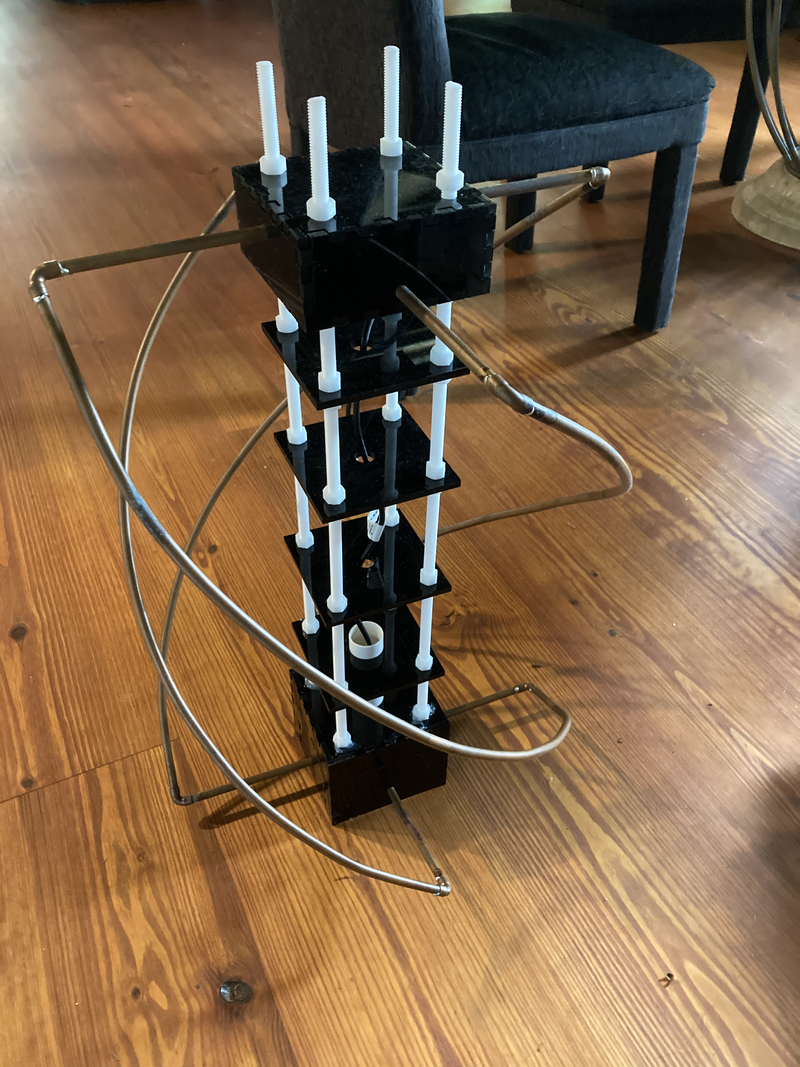

QFH Antenna
Final Assembled Antenna
The antenna was connected to an RTL-SDR USB stick for reception. Gpredict was used to determine when satelite passes would occur next. During a pass the open source WQRX software was used to configure the RTL-SDR for the satellite frequency and for FM demodulation mode. The FM bandwidth was set to about 36MHz to account for doppler shift when the satellite was low on the horizon. The FM demodulated output was recorded to an uncompressed audio file. I wrote a Python program to convert the audio file into an image.

QFH deployed

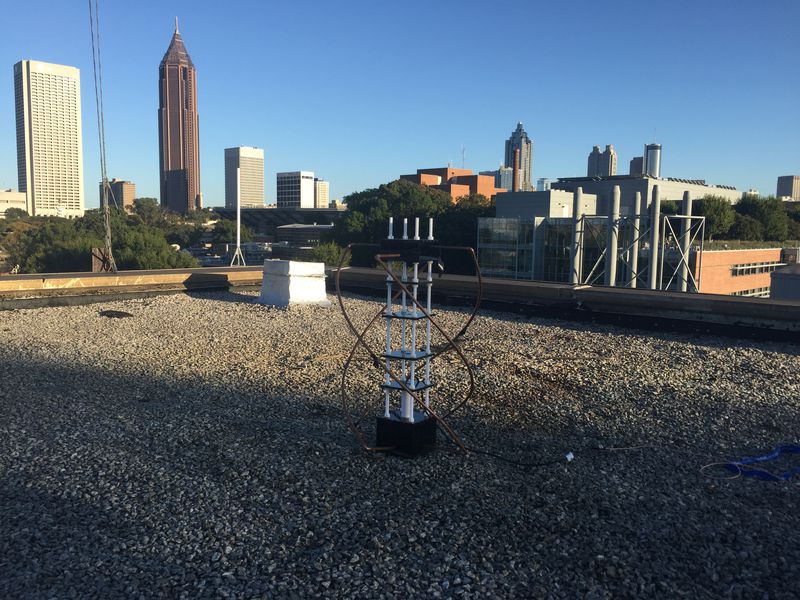

QFH on top of the Van Leer building @ Georgia Tech in Atlanta. Receiving a photo of Hurricane Matthew
The APT satellites usually send two different images at once, usually one is infrared and the other is visible.

Hurricane Matthew

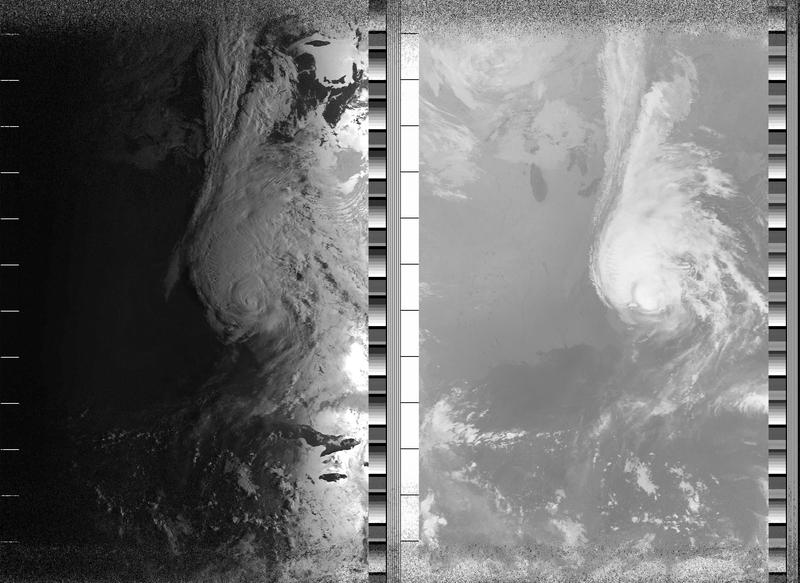

Decoded APT image of Hurricane Matthew (2016)
Listen to the wideband FM demodulated APT signal here. (FLAC audio file)

Nixie Display

Nixie display project from 2018. Uses the common IN-12 tubes. Nixie Gif Nixie Silk Screen Nixie front copper Nixie back copper Power front copper Power back copper

Miscellaneous and Forgotten Projects

Night Vision Monocular

Constructed by first cannabalizing an old VHR camcorder's viewfinder. Old VHS camcorder viewfinders commonly used NTSC video inputs. Next I bought a cheap Sony "spy cam" from eBay, I found a particular Sony model that had good low light sensitivity and did not have an IR filter. Also bought some infrared LEDs from eBay and an electronics project enclosure from Radio Shack (R.I.P Radio Shack). Fixing the Sony mini spy cam and about 8 of the LEDs to the front of the box and aiming the viewfinder out the back, I had a basic night vision monocular. It worked suprisingly well, you could see in absolute darkness at least 5-10 feet in front of you. The only surviving photo of this firehazard is below.

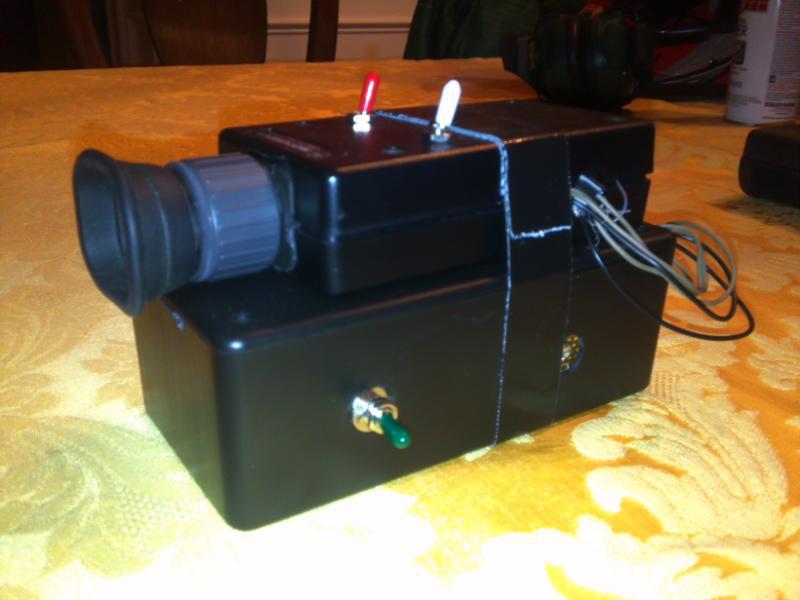

Night vision monocular
Night vision monocular

Biquad Antenna Car

Built a biquad antenna on a PCB. I used the spray paint method to build this board, just like the QFH balun board. I built this board as part of a class competition. Each team was provided with an RF recitifer and had to build their own antenna and car. The goal was to get your car to travel as far as possible. The power source was a 2.4GHz RF generator. I bought a solar power car from Amazon and removed the solar panel. I built up a cardboard frame to hold the antenna up into the RF generators beam path. The car performed really well.

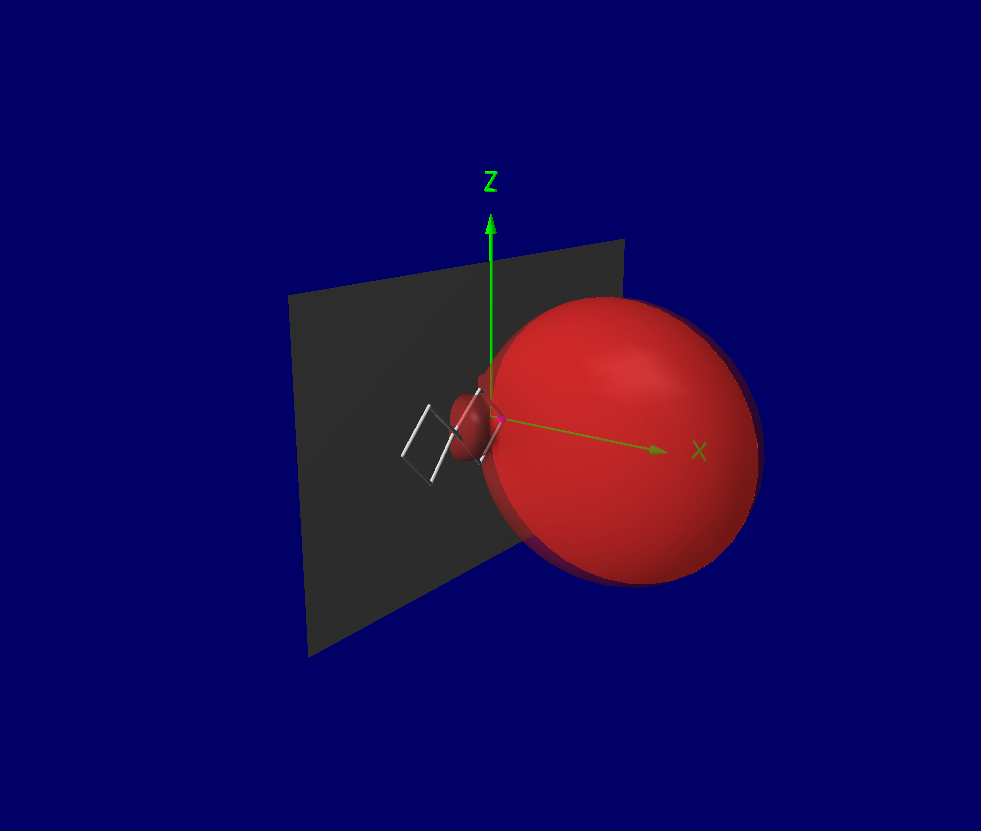

biquad simulation
4NEC simulation

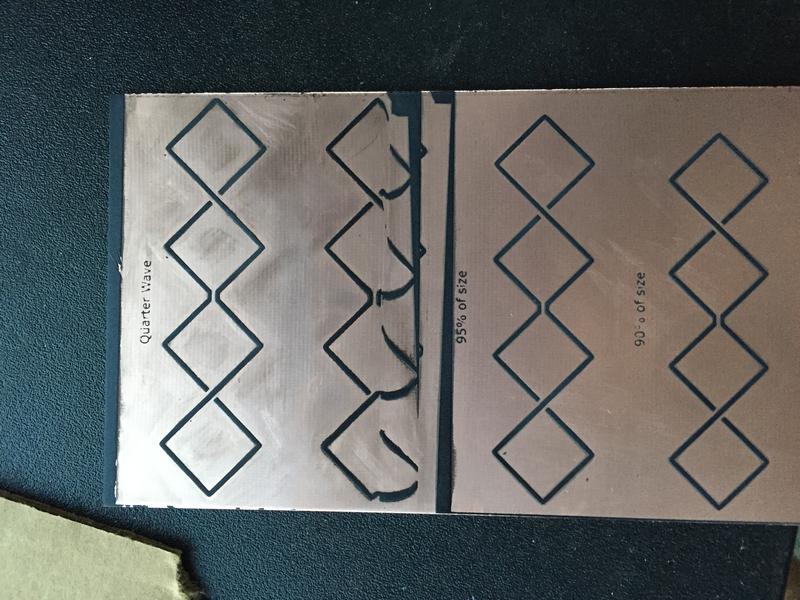

Simulated as a wire antenna but of course the antenna is actually on a dielectric surface, so I shrunk some versions of the antenna to compensate. Unfortunatley, the laser etcher lost its mind halfway through the etching, see below. pre etched board
After laser etching, before copper etching
ferric bath

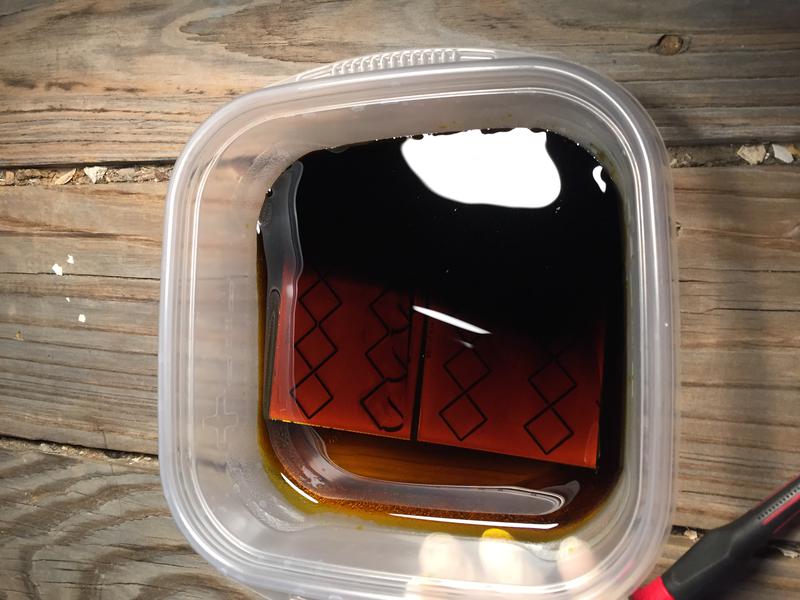

Copper etching in ferric chloride
biquad up close

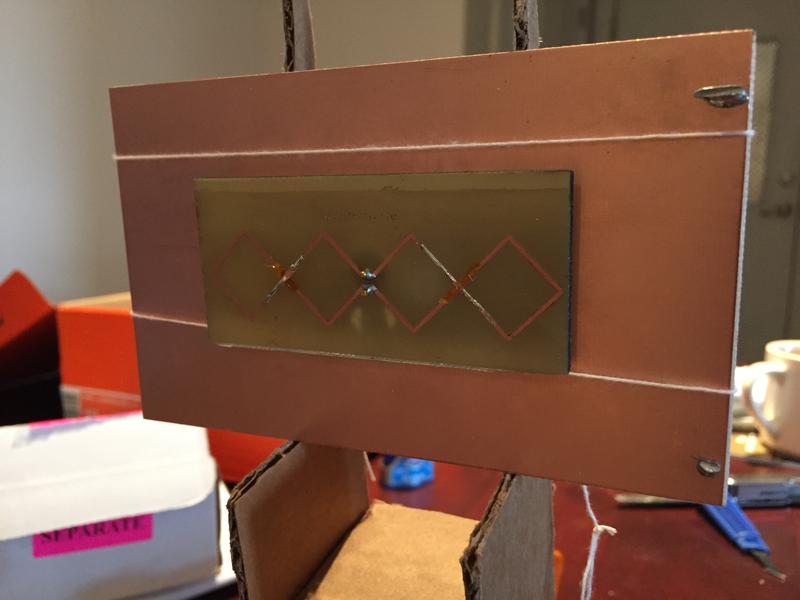

Up close look at the cut board with reflector

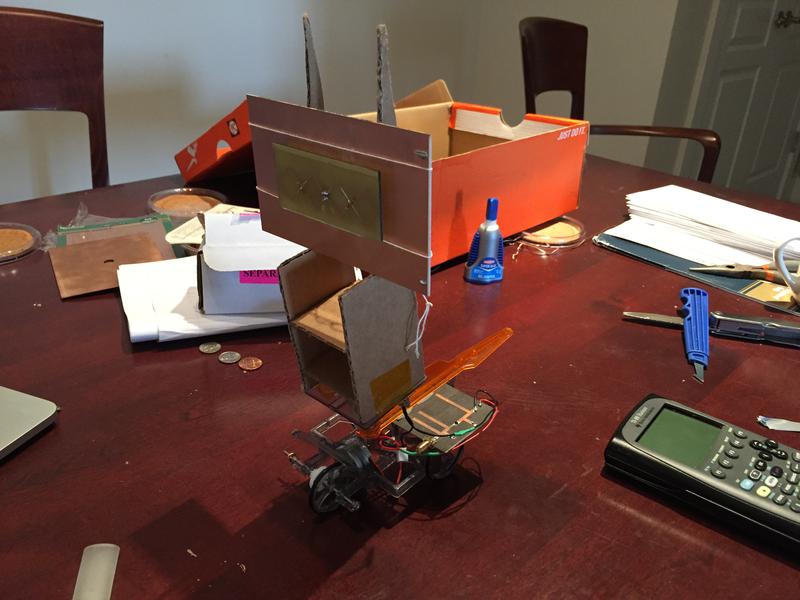

biquad car
View of the "RF" powered car

Chicago Windmill

Borrowed a bucket truck to assess repairing an old 1939 chicago windmill.

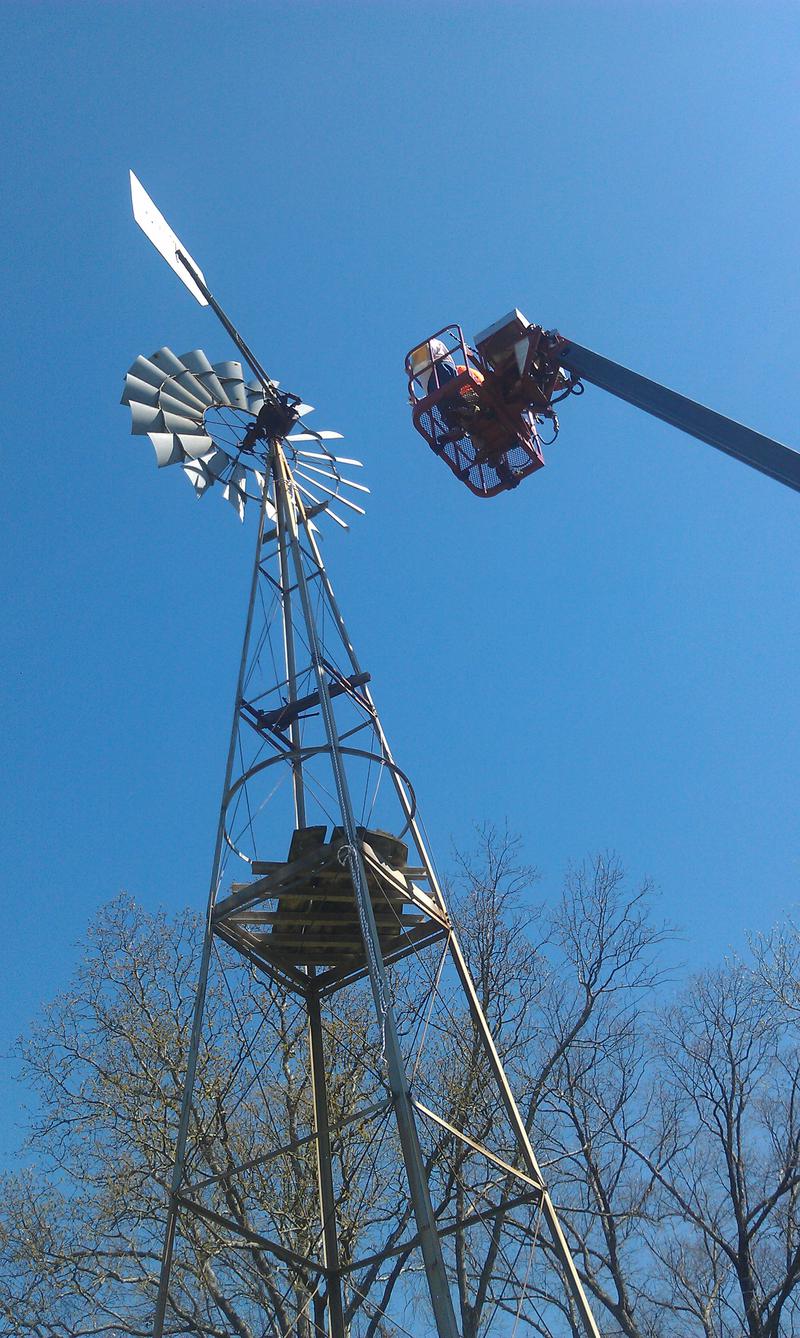

Boom truck used to access gear box

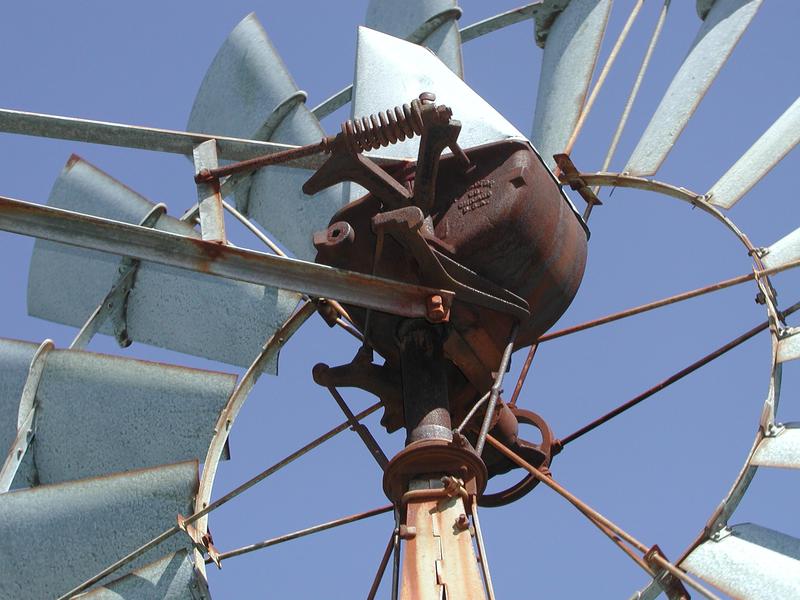

Looking up at the gear box from below

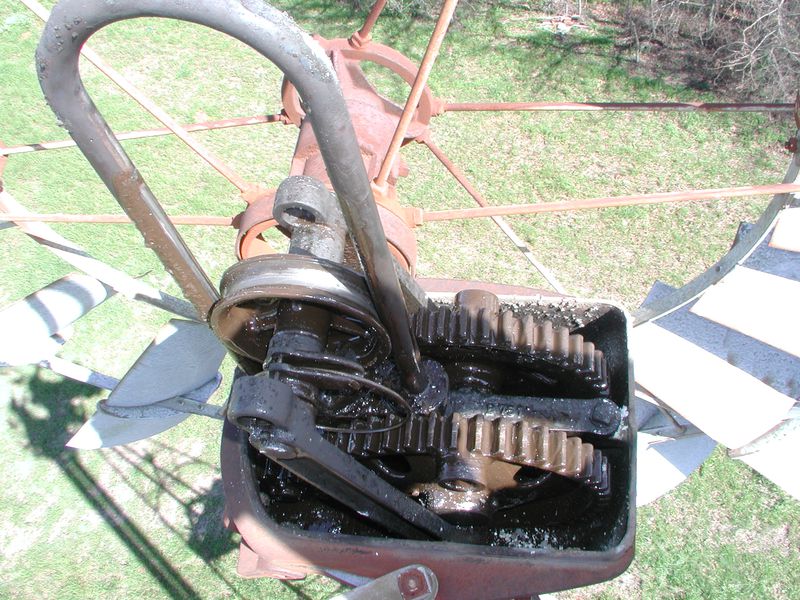

Gear box cover removed

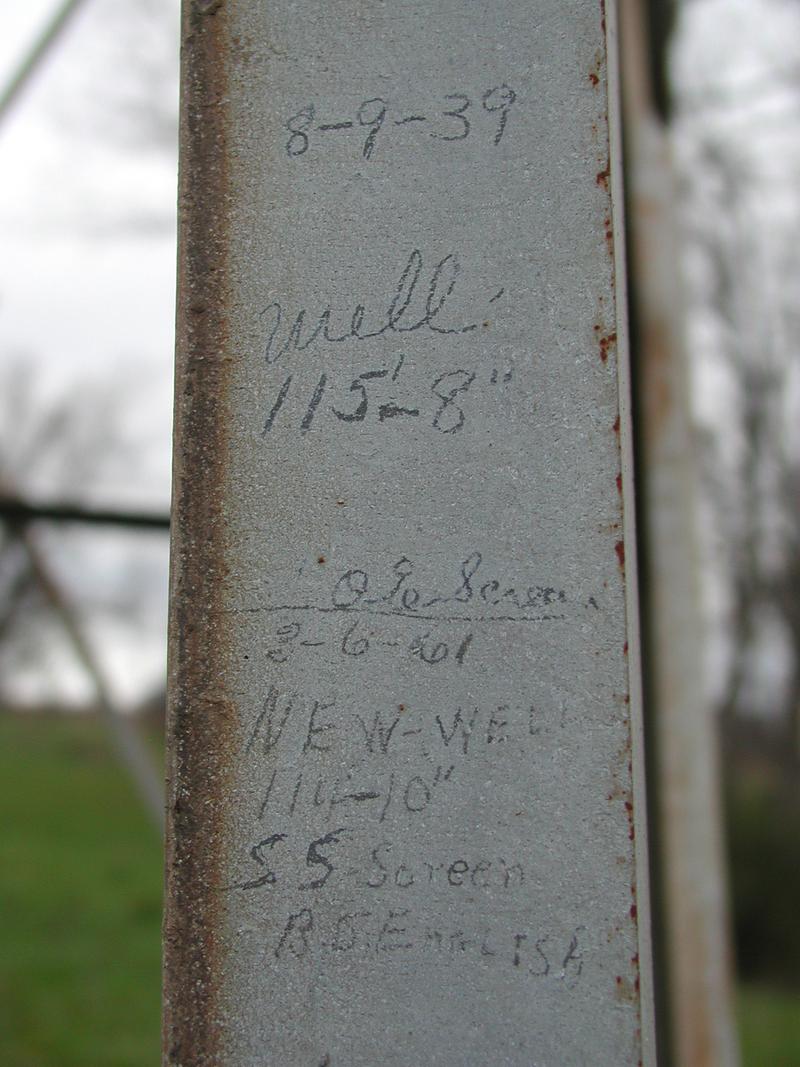

Markings indicating date and well depth

Rocket Relay Car

6th grade me thought it would be cool to launch a rocket remotely from an RC car. So I attached a Estes rocket launcher to an RC car. Attached a small RC car upside down on top with a screw in a wheel that would make contact with the "launch" circuit of the Estes launcher. Volia.

rocket relay

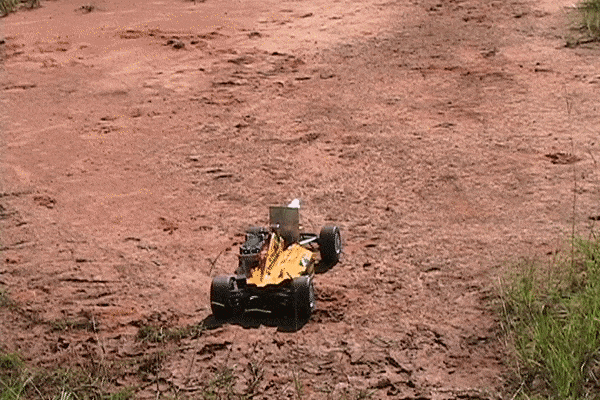

Gif of a launch

Wobble Scope

Wired up an audio amp to the drive coils of this old surveillance CRT display.

wobble

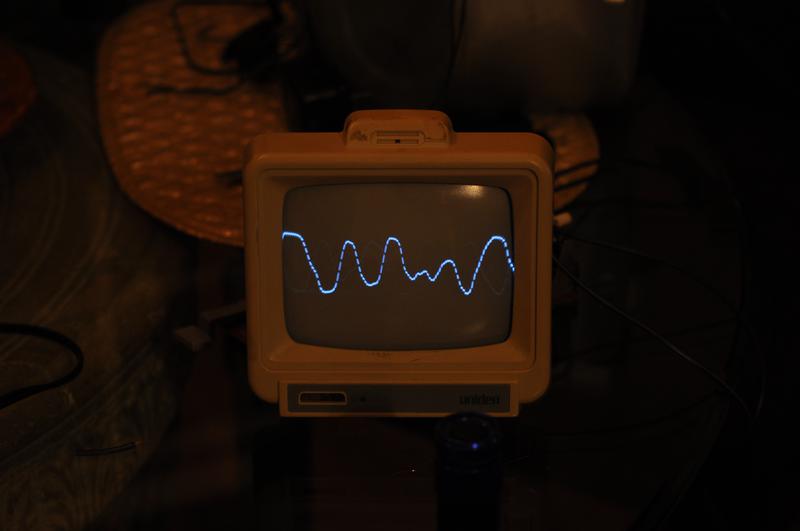

Wobbl'n

Cube

My buddy made an awesome replica cube from the Portal game. He outfitted it with speakers and lights. I just made a little Arduino board to control the lights based on sound intensity for him.

cubing
The Cube in action

Cellphone

Put together a rudimentary cellphone using a SIM900 module and an Arduino.

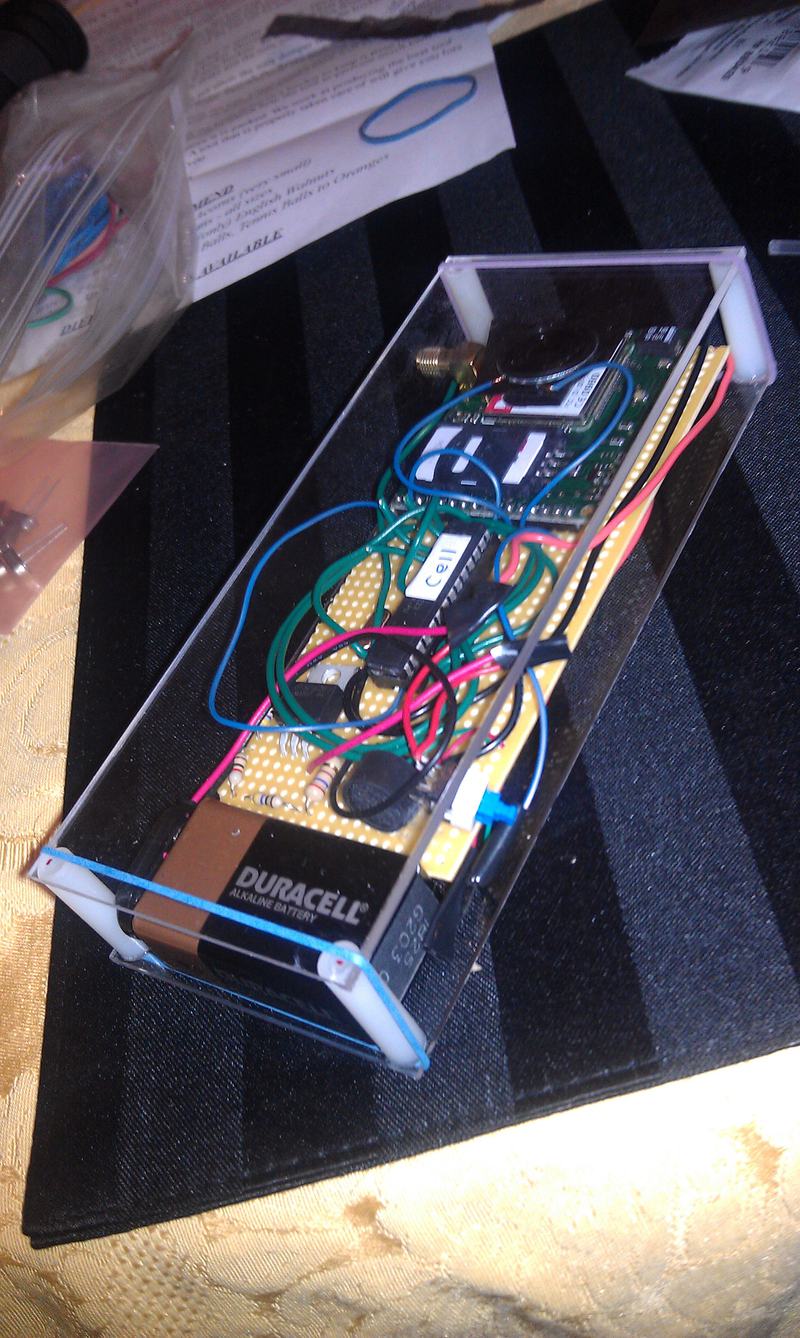

cell v1
The cell phone that could only call one person
cell v2

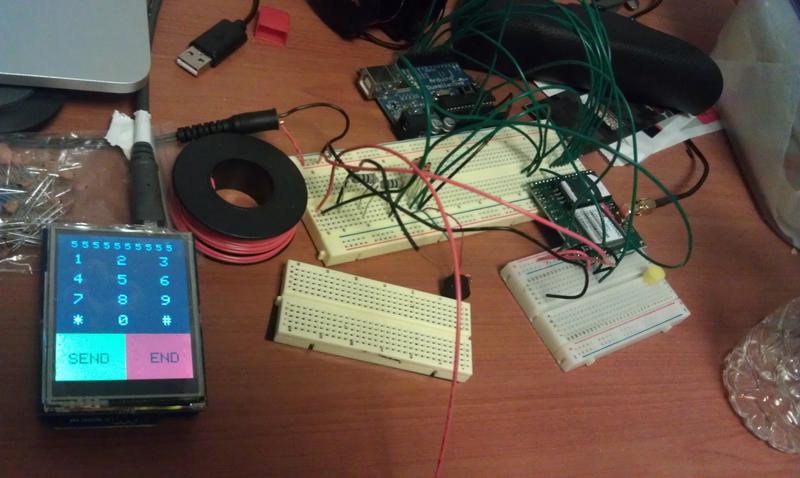

Adding a keypad

Bike Rack

Welded a steel frame with two bike fork mount holders for a Nissan Xterra roof.

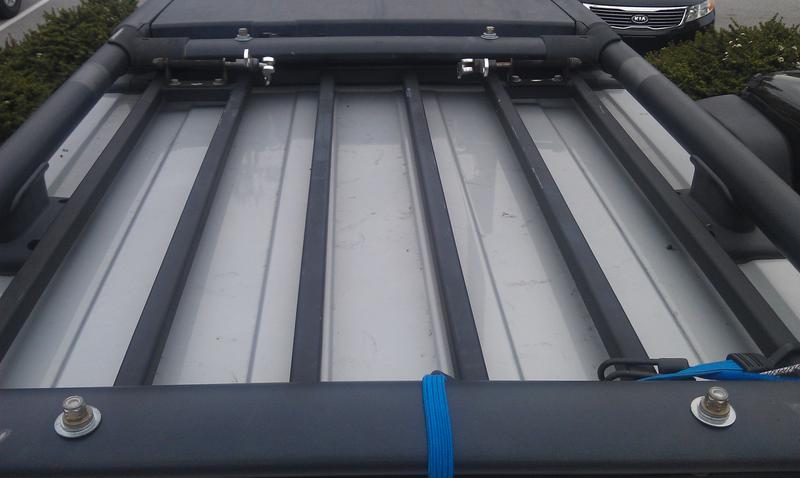

bike rack
Bike Rack

UV Meter

I was an outdoor pool lifeguard for a while and was always curious about how much UV was getting through on cloudy days. Used a UV LED as a sensor to measure UV level and display using a bar LED. Not really sure what the spectral repsonse of a UV LED is but it did seem to work somewhat.

uv

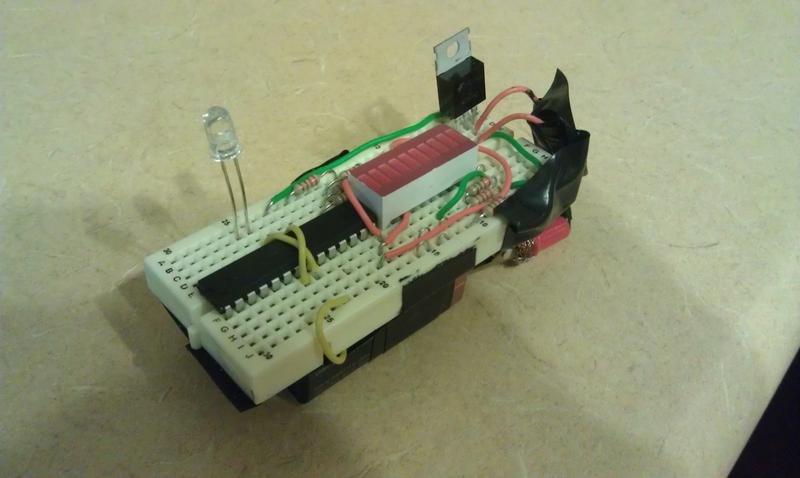

Sketchy UV Meter
  • Email: dbl1716@gmail.com

    Mountain Biking

  • Fun Mountain Biking Trails
    • LH Thompson: Macon, GA
    • Chicopee Woods: Gainsville, GA
    • Oak Mountain: Birmingham, AL
    • The Pig: Macon, GA

    Hiking

    evans
    Mt Evans
    iron
    Flat Irons

    Kiteboarding

    tav
    Tavernier Key
    tav
    Ohio Key
    hilton

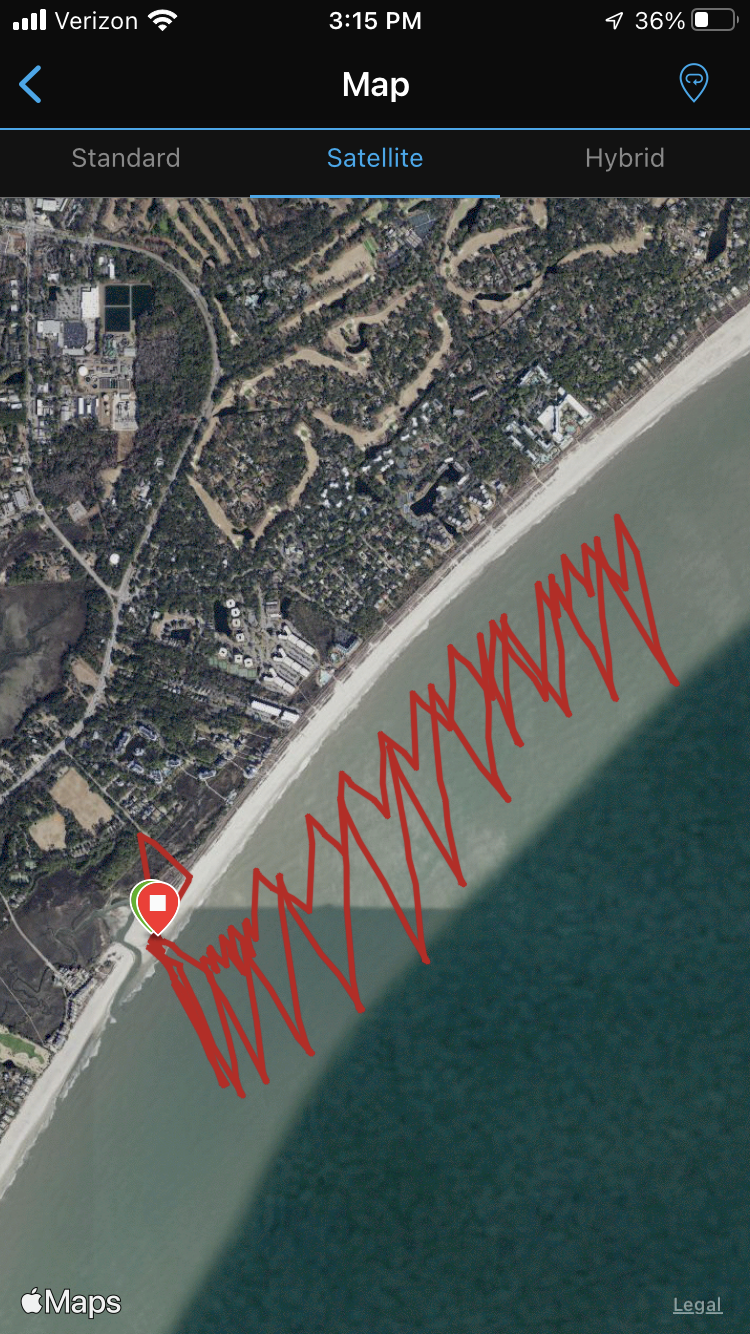

    Track at Hilton Head
